44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire For Motor

Product Categories
Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

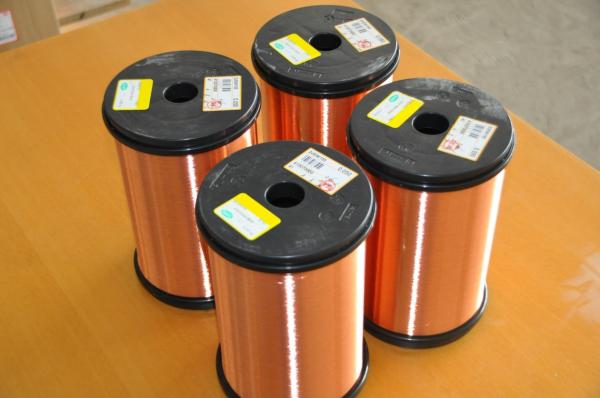

44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire For Motor

Brand Name : Ruiyuan

Model Number : 0.05mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire for Motor

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.05mm

Conductor material : Copper

Key word : 44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire for Motor

Type : 44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire for Motor

Contact Now

44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire for Motor



Our enameled copper wire, especially weldable UEW and ultra-fine enameled copper wire, represents the pinnacle of quality and performance in the enameled wire market. Committed to excellence and focused on customer satisfaction, we are proud to provide products that not only meet but exceed industry standards. Trust us to provide the enameled wire solutions you need for your precision applications and experience the difference high-quality materials can make in your projects. Whether you are in the automotive, aerospace or electronics industries, our enameled wires will provide the reliability and performance you need.





Test Items






Requirements


 		 Test Data
1st Sample 2nd Sample 3rd Sample
Appearance Smooth & Clean OK OK OK
Conductor Diameter 0.05mm ± 0.002mm 0.050 0.050 0.050
Thickness of Insulation ≥0.005mm 0.0080 0.0080 0.0080
Overall Diameter ≤ 0.006 mm 0.058 0.058 0.058
DC Resistance ≤ 9.528 Ω/m 8.753 8.713 8.723
Elongation ≥ 12 % 20 20 21
Breakdown Voltage ≥275V 863 747 832
Pin Hole ≤ 8 faults/5m 0 0 0
Adherence No cracks visible OK OK OK
Cut-through 230℃ 2min No breakdown OK OK OK
Heat Shock 200±5℃/30min No cracks OK OK OK
Solderability 390± 5℃ 2 Sec No slags OK OK OK
Insulation Continuity / 0 0 0

Name

EPolyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable

Key word

Polyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable

Insulationh

Enamel

Thermal rating

155

Diameter of the enameled copper wire

 0.05mm
