40 AWG 0.08mm Enameled Wire Winding Insulated Solid

Name: 40 AWG 008mm Enameled Wire Winding Insulated Solid
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.08mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 40 AWG 0.08mm Enameled Wire Winding Insulated Solid

Thermal rating : 155/180

Insulation Material : Polyurethane

Diameter : 0.08mm

Conductor material : Copper

Key word : 40 AWG 0.08mm Enameled Wire Winding Insulated Solid

Type : 40 AWG 0.08mm Enameled Wire Winding Insulated Solid

Contact Now

40 AWG 0.08mm Enameled Wire Winding Insulated Solid

Like other wire, magnet wire is classified by diameter (AWG number, SWG or millimeters) or area (square millimeters), temperature class, and insulation class.

types: Grade 1, Grade 2 and Grade 3. Higher grades have thicker insulation and thus higher breakdown voltages.

The temperature class indicates the temperature of the wire at which it has a 20,000 hour service life. At lower temperatures the service life of the wire is longer (about a factor of two for every 10 °C lower temperature). Common temperature classes are 105 °C (221 °F), 130 °C (266 °F), 155 °C (311 °F), 180 °C (356 °F) and 220 °C (428 °F).

Item	2UEW155 40 AWG 0.08mm Motor Winding Insulated Copper Magnet Wire Solid
Key word	2UEW155 40 AWG 0.08mm Motor Winding Insulated Copper Magnet Wire Solid
Coating	Polyurethane
Thermal grade	155

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.080±0.002	0.45	0.45
Coating Thickness	≥ 0.008 mm	0.011	0.012
Overall Diameter	≤ 0.094 mm	0.091	0.092
Conductor Resistance	≤ 3.608 Ω/m	3.456	3.443
Elongation	≥ 16 %	19	19
Breakdown Voltage	≥ 425 V	1578	1496
Pinhole Test	≤ 5 holes/5m	0	0
Continuity	≤ 40 holes/30m	0	0
Test Items	Technical Requests	Results
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2minsno breakdown	OK
Heat Shock	175±5℃/30minno crack	OK
Solder Ability	390± 5℃ 2SecNo blister, no expansion, no shed	OK

Product Tags:

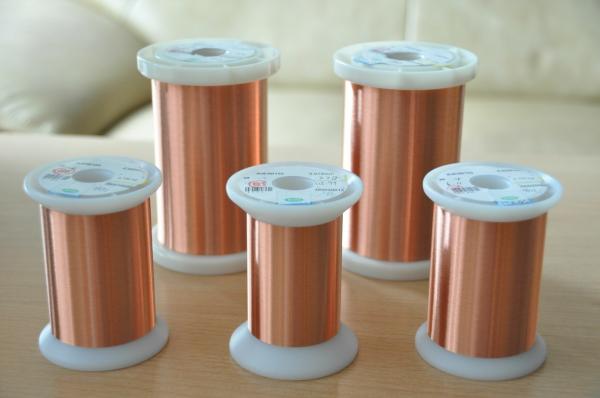

40 AWG 0.08mm Enameled Wire Winding Insulated Solid Images
