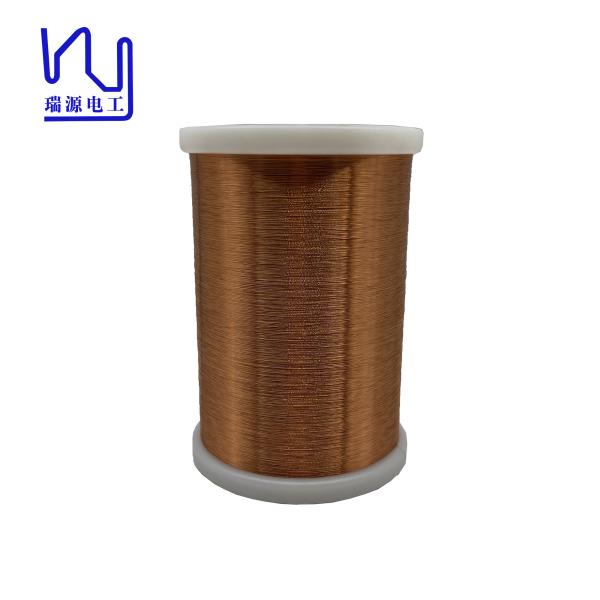

UL Certificated 39WG NEMA Copper Enameled Wire 0.09mm Diameter

Name: UL Certificated 39WG NEMA Copper Enameled Wire 009mm Diameter
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.09mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : UL Certificated High Quality 39WG NEMA Copper Enameled Wire

Thermal rating : 155

Insulation Material : UEW

Diameter : 0.09mm

Conductor material : Copper

Key word : UL Certificated High Quality 39WG NEMA Copper Enameled Wire

Contact Now

UL Certificated High Quality 39WG NEMA Copper Enameled Wire

Enameled copper wire is an important component in the production of microelectronic products because of its fine wire diameter, high temperature resistance, good insulation performance, and excellent conductivity. Its versatility and reliability make it the first choice for manufacturers of small electronic equipment.

As the demand for smaller, more powerful electronics continues to grow, enamelled copper wire will undoubtedly remain a staple in microelectronics.

Product	UL Certificated High Quality 39WG NEMA Copper Enameled Wire
Key word	UL Certificated High Quality 39WG NEMA Copper Enameled Wire

Test Item	Unit		Standard Value			Reality Value
Test Item	Unit		1^st Sample	2^nd Sample	3^rd Sample	Reality Value
Appearance	Smooth & Clean		OK	OK	OK	OK
Conductor Diameter	0.090±	0.002	0.090	0.090	0.090	OK
Thickness of Insulation	≥ 0.010 mm		0.013	0.012	0.013	OK
Overall Diameter	≤ 0.107 mm		0.103	0.102	0.103	OK
DC Resistance	≤ 2.835Ω/m		2.702	2.729	2.716	OK
Elongation	≥ 17 %		22.5	23.4	21.9	OK
Breakdown Voltage	≥ 700 V		2081	2143	1986	OK
Pin Hole	≤ 5 Faults/5m		0	0	0	OK
Continuity	≤12Faults/30m		0	0	0	OK
Test Items	Technical Requests				Results
Adhesive	Coating layer is good				OK
Cut-through	200℃ 2mins no breakdown				OK
Heat Shock	175±5℃/30min no crack				OK
Solder Ability	390± 5℃ 2Sec Smooth				OK
