0.015mm Super Fine Enameled Copper Magnet Winding Wire For Relays / Transformer / Solenoids Coil

Name: 0015mm Super Fine Enameled Copper Magnet Winding Wire For Relays Transformer Solenoids Coil
Brand: Rvyuan
Price: 1 USD

Buy cheap 0.015mm Super Fine Enameled Copper Magnet Winding Wire For Relays / Transformer / Solenoids Coil product

Brand Name : Rvyuan

Model Number : PEW/UEW/EIW

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Diameter : 0.015mm

Thermal Class : 155

Coating : UEW

Conductor material : Copper

Brand : Solid

Port : Tianjin

Contact Now

0.015MM SUPER FINE ENAMELED COPPER MAGNET WINDING WIRE FOR RELAYS/TRANSFORMERS/SOLENOIDS COIL

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

MAIN FEATURES

1) With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
2) Superior ''Q'' characteristic at high frequencies.
3) Excellent film adhension and flexibility.
4) Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

0.015mm Super Fine Enameled Copper Magnet Winding Wire For Relays / Transformer / Solenoids Coil

TEST REPORT

Test Item	Unit	Standard Value	Reality Value			Remark
Test Item	Unit	Standard Value	Min.	Ave.	Max.	Remark
Conductor dimensions	mm	0.015±0.001	0.015	0.015	0.015
(Basecoat dimensions) Overall dimensions	mm	Max.0.018	0.0171	0.0171	0.0171
Insulation Film Thickness	mm	Min. 0.002 mm	0.0021	0.0021	0.0021
Bonding Film Thickness	mm	/	/	/	/
Continuity of covering	Pcs	Max.60	Max.0
Flexibility		/	/
Adherence		no crack	Good
Breakdown Voltage	V	Min.120	Min.283
Resistance to Softening (Cut Through)	℃	Continue 2 times pass	200℃/Good
(390℃±5℃) Solder test	s	Max.2	Max. 1.5
Bonding Strength	g	/	/
Electrical Resistance	Ω/m	89.83-104.41	95.7	95.7	95.7
Elongation	%	Min.5	8	8	8
Breaking Load	N	Min	/	/	/
Surface appearance		Smooth	Good
Test Result: OK			Synthetic Evaluation: OK

0.015mm Super Fine Enameled Copper Magnet Winding Wire For Relays / Transformer / Solenoids Coil

Product Tags:

solderable magnet wire

self bonding magnet wire

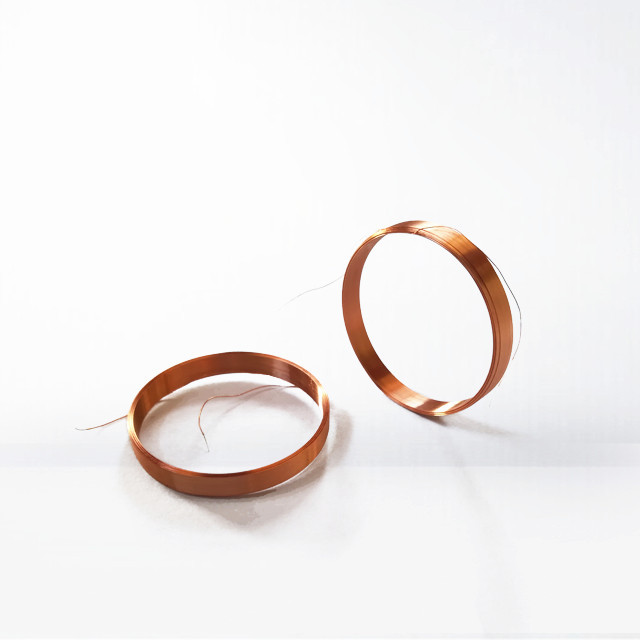

0.015mm Super Fine Enameled Copper Magnet Winding Wire For Relays / Transformer / Solenoids Coil Images
