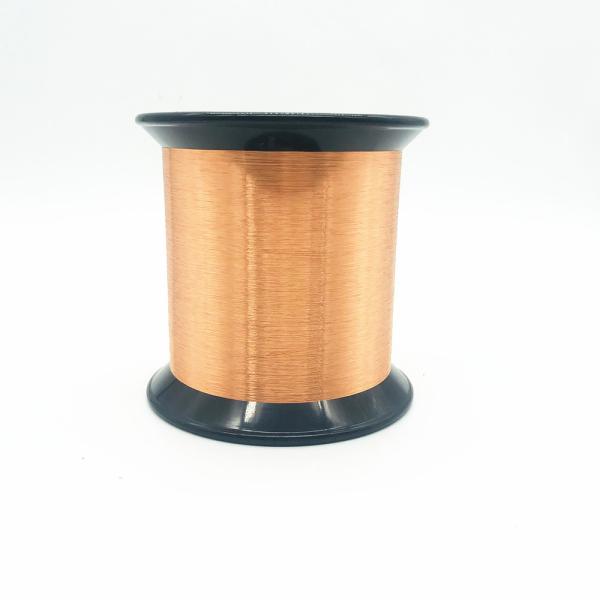

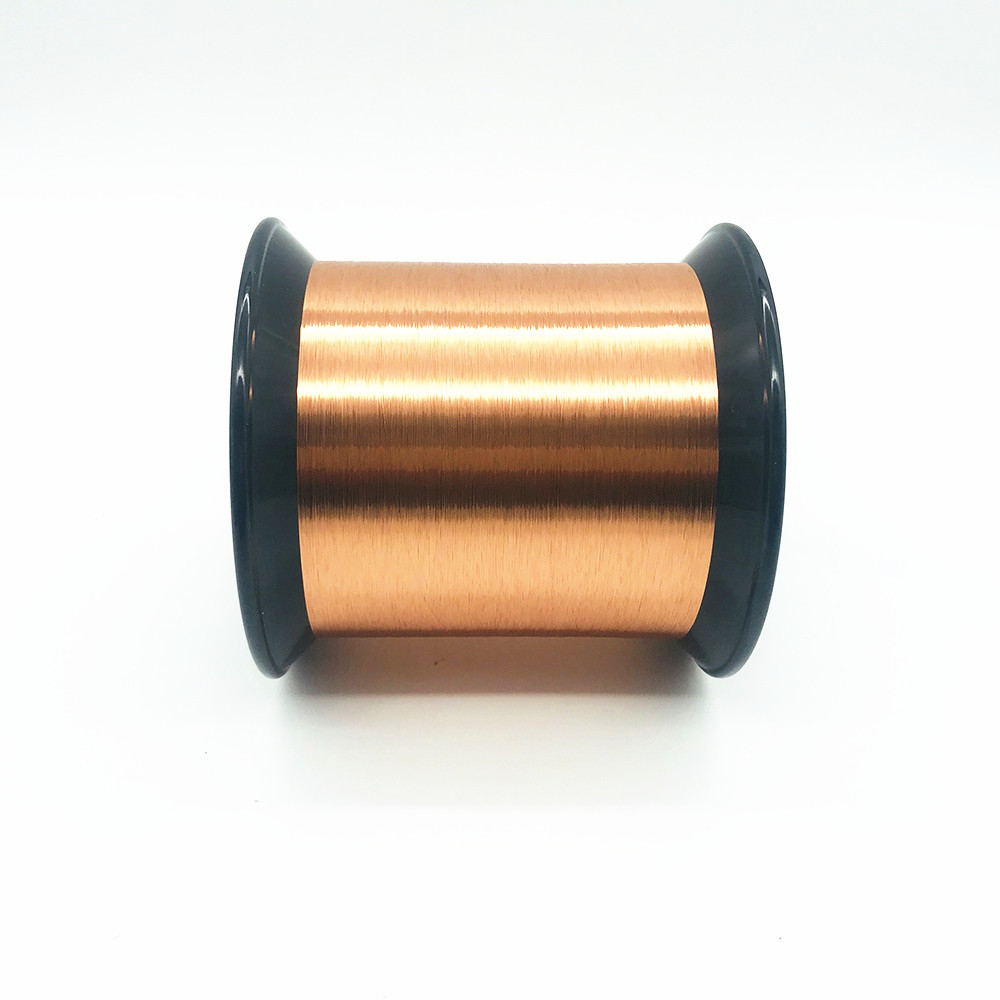

Copper UEW 155 0.063mm Insulated Magnet Wire

  • 1
  • 2

Brand Name : Ruiyuan

Model Number : 0.063mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Enameled copper wire

Insulation : Polyurethane

Size : 0.063mm

Thermal grade : 155

Conductor material : Copper

Conductor type : Solid

Contact Now

UEW 155 0.065mm Copper Magnet Wire 0.012-0.08 mm Ultra Thin Enameled Copper Wire



We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...



Copper UEW 155 0.063mm Insulated Magnet Wire



Characteristics
 		 Technical requests
 		 Test Results Conclusion

Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter
 		 0.063±
 		 0.002 0.063
 		 0.063
 		 0.063
 		 OK

0.002
Coating Thickness ≥ 0.007 mm 0.011 0.01 0.011 OK
Overall Diameter ≤ 0.077 mm 0.074 0.073 0.074 OK
Conductor Resistance ≤ 5.900 Ω/m 5.478 5.512 5.482 OK
Elongation ≥ 14 % 21 22 20 OK
Breakdown Voltage ≥ 400 V 1768 1672 1723 OK
Pinhole Test ≤ 5 holes /5m 0 0 0 OK
Test Items Technical Requests Results
Adhesive Coating layer is good OK
Cut-through 230℃ 2mins no breakdown OK
Heat Shock 200℃±5℃/30min no crack OK
Solder Ability 390± 5℃ 2 Sec Smooth OK
Solvent Resistance No blister, no expansion, no shedOK
