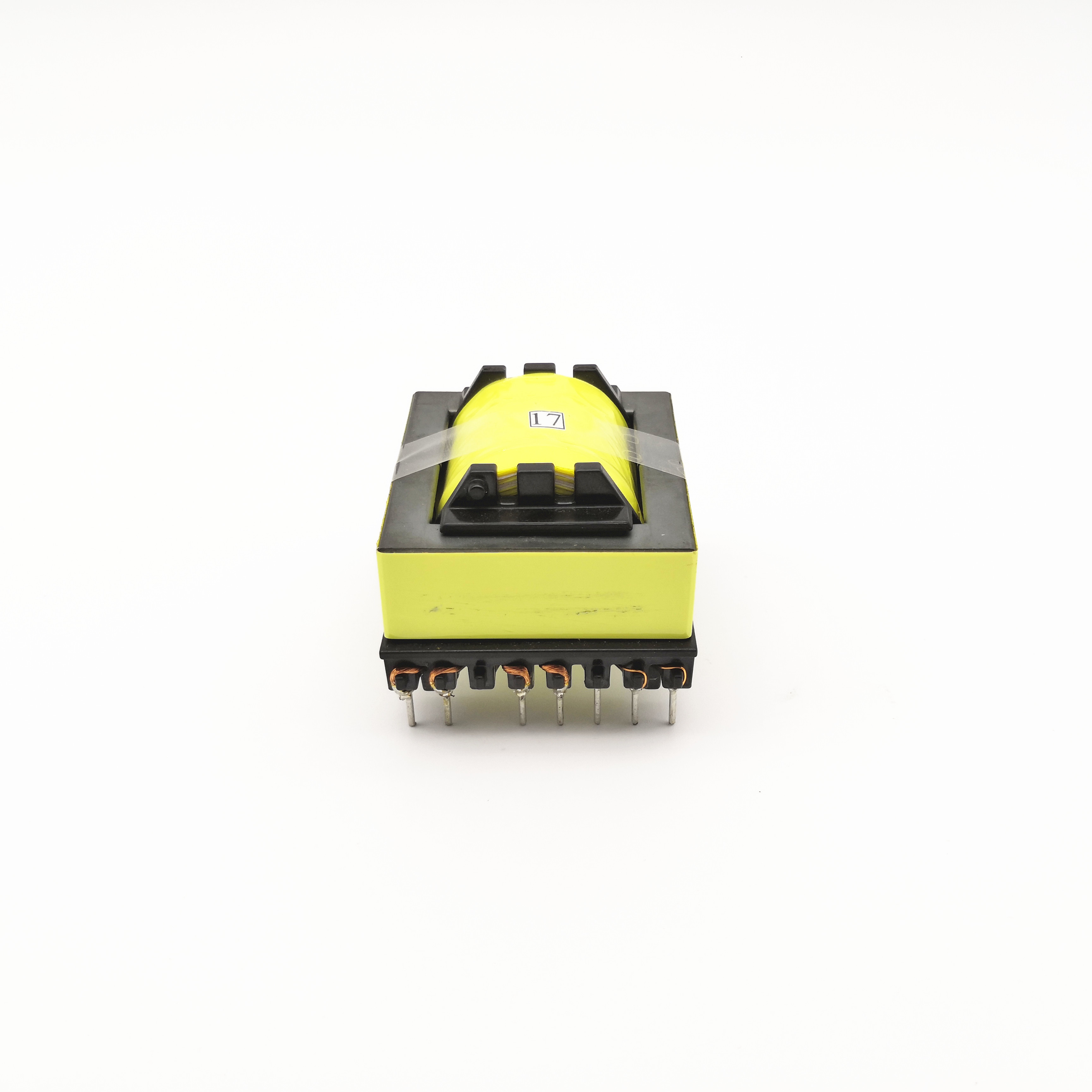

Precision Horizontal Switch Mode Transformer 100KHz 1Vrms For Power Supply

Name: Precision Horizontal Switch Mode Transformer 100KHz 1Vrms For Power Supply
Brand: Rvyuan
Price: 1 USD

Buy cheap Precision Horizontal Switch Mode Transformer 100KHz 1Vrms For Power Supply product

Brand Name : Rvyuan

Model Number : ER49

Certification : UL/ROHS/ICE/ISO9001/ISO14001

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 2000000 Piece/Pieces per Month

Delivery Time : 10-15 workding days

Packaging Details : Carton

Size : 64cm*53cm*44cm

Bobbin Shape : Horizontal

Inductance : 1,2-4,5=290uH±10%

Recommened Power : 160-180W

Test Conditions : 100KHz 1Vrms

Leakage Induction : 1,2-4,5=8uH MAX

Contact Now

HIGH FREQUENCY HIGH VOLTAGE TRANSFORMER BEST PRICE RESONANT INVERTER TRANSFORMER FOR POWER SUPPLY

A high-frequency magnetic resonance transformer, an E-shaped iron core made of a soft ferrite material constitutes a double closed magnetic circuit with an additional air gap, and the magnetic core column is respectively provided with a main winding, a secondary winding and a compensation winding The compensation winding and the secondary winding and the capacitor form a resonant circuit, and the ferromagnetic resonance principle is used to obtain a stable output voltage of the secondary winding, and the utility model has the functions of voltage transformation and voltage regulation, and does not need an additional voltage modulator to regulate the voltage. Moreover, through a plurality of coils of the secondary winding or a plurality of taps on a certain coil, a plurality of different voltages can be simultaneously output, and the short-circuit protection is provided by itself, and the input current decreases with the increase of the short-circuit current of the load.

ER49
Dimention(mm)	Pin Quantity(pcs)	Pin Array(mm)	Power
645344	8+8	6.35	160-180w
Resistance(MAX)	Inductance	Leakage(MAX)	Test Condition
2-4=195mΩ±25% 1-5=155mΩ±20%	1,2-4,5=290uH±10%	1,2-4,5=8uH MAX	100KHz 1Vrm
