Solid Conductor Ei 4.0mm*0.4mm Rectangular Copper Wire

Name: Solid Conductor Ei 40mm04mm Rectangular Copper Wire
Brand: Ruiyuan
Price: 1 USD

Buy cheap Solid Conductor Ei 4.0mm*0.4mm Rectangular Copper Wire product

Brand Name : Ruiyuan

Model Number : EI/AIW

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Negotiation

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Flat magnet wire

Conductor material : Copper

Conductor type : Solid

Width : 4.0mm

Thickness : 0.4mm

Thermal class : 220

Contact Now

EI / AIW Class 220 4.0mm*0.4mm Flat Enameled Winding Wire Rectangular Copper Wire

Meet design requirement of lower height, smaller size, lighter and more power.The wire is widely used in electronice, military electronic, spaceflight.

Bigger surface area than round wire at the same cross section, reducce skin effect effectively, decrease current loss, that/s better to adpat high frequency transduction.

High space factor and fill in ratio, greatly reduce resistance, pass bigger current, get higher Q value that is better to adapt high current load.

The product that use rectangular wire has such features: simple in structures, good heat dissipation ,stable performance, stablegood consistency. Maintain stable temperature rise current and saturation current in high frequency and high temperature environment anti EMI, small vibration, low noise and install in high density.

Solid Conductor Ei 4.0mm*0.4mm Rectangular Copper Wire

EI/AWIJ220 4.0*0.4mm
Characteristics	Standard		Test Result
Apperance	Smooth Equality		Smooth Equality
Conductor Diameter	Width	4.0±0.006	4.015
Conductor Diameter	Thickness	0.4±0.009	0.398
Min.thickness of Coating layer	Width	0.020	0.047
Min.thickness of Coating layer	Thickness	0.030	0.044
Max. overall Diameter	Width	4.100	4.062
Max. overall Diameter	Thickness	0.450	0.442
Pinhole	≤3hole/m		0
Elongation	≥30 %		39
Flexibility and Adherence	No crack		No crack
Conductor Resistance (Ω/km at 20℃)	Max. 11.44		11.27
Breakdown Voltage	≥0.7KV		1.3KV
Heat shock	No Crack		No Crack
Conclution	Pass

Solid Conductor Ei 4.0mm*0.4mm Rectangular Copper Wire

Product Tags:

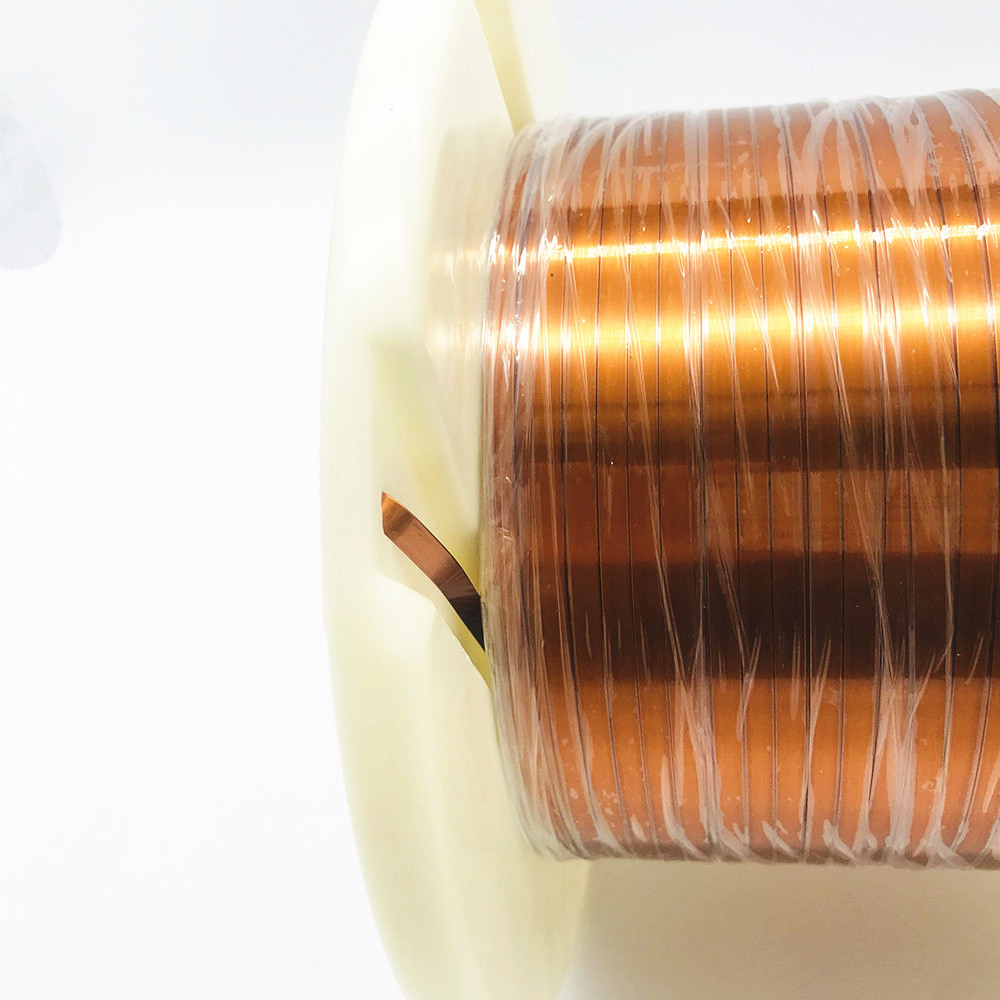

Solid Conductor Ei 4.0mm*0.4mm Rectangular Copper Wire Images
